Trilok Profile is the well-established C45 Steel suppliers in Pune, dealers and stockist in Pune,
Maharashtra, and offers quality steel products for various industrial and commercial
applications.
The C45 steel products include C45 sheet, C45 Spring Steel Strip, C45 medium
Carbon Steel, Stainless Steel C45 Round Bar, etc. All these products are made up of high-quality
steel materials to ensure reliable performance for a longer time.
C45 Steel Dealers and Stockist in Pune, Maharashtra
A C45 steel, known as AISI 1045, is an intermediate-carbon steel sheet that can be used for
components that require a balance of strength, toughness, and corrosion resistance. Carbon steel
C45 contains more carbon than mild steel and therefore offers significant strength and hardness
that makes it an ideal material for applications subjected to high loads and high stress. Our
offered C45 steels (plates or sheets) by our C45 Steel dealers in Maharashtra are used to manufacture machine
parts, shafts, gears, automotive parts, and many heavy-duty applications.
Types of C45 Steel:
We are leading C45 Steel suppliers in Pune, Maharashtra, and provide multiple types of it to
suit various industrial needs.
-
C45 Steel Round: This steel type is provided in the black hot rolled state or occasionally in the normalized state, exhibiting a common tensile strength range of 570–700 Mpa and hardness range of 170–210 in both states. Anyhow It does not react effectively to nitriding because of an absence of appropriate alloying elements. C45 steel round bar is comparable to EN8 or 080M40 and is ideal for producing components like gears, bolts, general-use axles and shafts, keys, and studs. It is available in both stainless steel C45 round bar and C45 alloy steel round bar.
-
C45 Steel Flat: They are rectangular bars made of medium-carbon steel with excellent strength and toughness to make the ideal complement to the round bars. They usually have a carbon content of 0.42%–0.50% and are used in applications demanding good machinability and wear resistance. These flats are commonly employed in the manufacturing of tools, automotive components and structural elements. Available in various thicknesses and widths they can be heat-treated to improve their mechanical properties such as hardness and tensile strength.
-

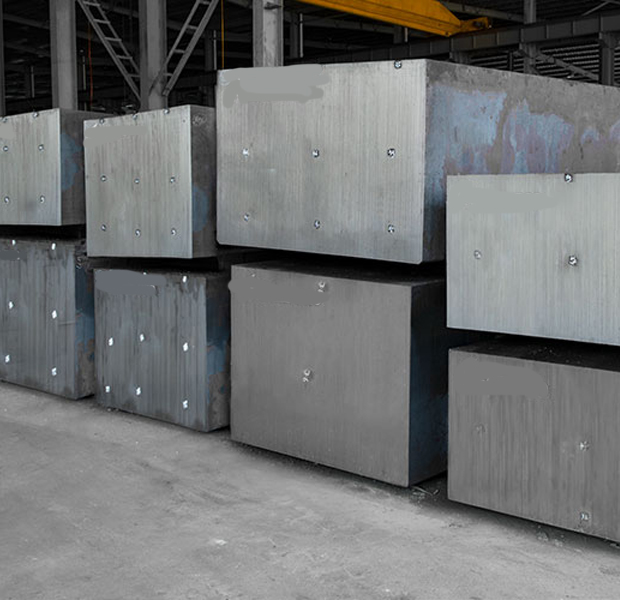

C45 Steel Block: C45 steel blocks are massive and robust steel pieces machined from rolled or forged steel billets. They are very versatile in application fields that need tough and hard materials for heavy-duty parts. Common uses are molds, dies, gears, and other machine components. C45 steel blocks, drillable to a high degree and capable of a thermal post-treatment for harder, more ductile, and wear-resistant materials. Their high load bearing capability makes them applicable for static and dynamic applications.
-
C45 Steel Plate: C45 steel panels are flat foils/plates of medium carbon steel which are known to have optimal mechanical properties, i.e., having high tensile strength and impact resistance. These plates are used in heavy structural engineering machine, also as a component in the fabrication of machine parts such as flange, base plate, and bracket. C45 carbon steel plate plates are common in a range of thicknesses and are often heat treated or surface hardened to optimize performance as a function of extreme conditions. Their use is most suited for cases where toughness and wear/abrasion are required. Some other types of steel plates like C45 spring steel strip/sheet, C45 plastic mould steel plate and C45 medium carbon steels are also available.
Technical Specifications of C45 Steel in Pune, Maharashtra:
Refer to the following technical chart for more detailed information of types of
C45 Steel in Pune, Maharashtra.
| Specifications |
C45 Steel Round |
C45 Steel Flat |
C45 Steel Block |
C45 Steel Plate |
| Shape & Dimensions |
Round bars (Cylindrical) |
Rectangular Bars |
Solid blocks (cut from billets) |
Flat Sheet |
| Thickness |
5 mm to 500 mm |
3 mm to 50 mm, Width: 20 mm to 500 mm |
50 mm to 500 mm |
5 mm to 150 mm |
| Carbon Content |
0.42%–0.50% |
0.42%–0.50% |
0.42%–0.50% |
0.42%–0.50% |
| Tensile Strength |
600–800 MPa |
600–800 MPa |
600–800 MPa |
340–410 MPa |
| Hardness (HB) |
170-210 |
170-210 |
170-210 |
170-210 |
| Feature |
Suitable for cutting, turning, and drilling |
Corrosion Resistance, Versatility |
Robust Construction, Durable |
Consistent thickness, Sleek surface |
| Applications |
Shafts, gears, axles, crankshafts, studs, machinery parts, and bolts |
Tools, automotive components, structural elements |
Molds, dies, gears, machinery parts |
Machine parts, flanges, brackets, structural uses |
Unique Features of C45 Steel:
We are known as the leading C45 Steel stockist in Pune, Maharashtra, for offering it with
several features and benefits which are given below.
- Composition: Medium C (0.42–0.50%), Mn (0.50–0.80%), low S and P.
- Strength: High tensile (600–800 MPa), moderate yield (300–450 MPa).
- Hardness: Can be heat treated up to ~50 HRC.
- Machinability: Excellent in annealed condition.
- Heat Treatable: Quenches, tempers, and anneals well for improved
properties.
- Weldability: Fair, requires preheat and post-weld heat treatment to
prevent cracking.
- Toughness: Good impact resistance.
- Corrosion Resistance: Limited, needs coatings or treatments for
corrosive environments.
Benefits of C45 Steel:
- Balanced Properties: Strength, toughness, and machinability in one
without high alloying cost.
- Good for Wear Parts: Suitable for making shafts, gears, and rollers
that need moderate wear resistance at an economical price.
- Easy to Machine and Shape: Good machinability in annealed condition,
can make complex parts with minimal tool wear.
- Good Compromise for Weldability: Not weldable like low-carbon steels
but can be welded with proper precautions, flexible for design changes.
- Availability: Widely available in various forms (bars, plates, sheets),
sizes, and specifications, ensuring easy procurement for diverse industries.
Applications of C45 Steel:
As C45 steel dealers in Pune, Maharashtra, our high-quality C45 steel and plates are used in
various industries for different applications such as:
- Automotive: Used for automotive supports, such as shafts and shaft
gears, reinforcement axles, and engine crankshafts, commonly available throughout
mechanical industries.
- Industrial Machinery: C45 steel is suitable for industrial machinery
components such as threads and spindles, hydraulic tubes, and fittings in hydraulic
systems.
- Construction: Commonly used for structural pins, dowels, and fasteners
in construction applications.
- Medical Devices: C45 steel sheets and plates are used for rollers in
applications such as surgical instruments and syringes for medicinal purposes.
Being the recognized C45 Steel suppliers in Pune, dealers and stockist in Pune, Maharashtra, Trilok Profile supplies a wide range of carbon steel plates to many industries. These products are widely demanded in the market due to their quality, features, and prompt delivery. For more details and information, go through our website or contact us.
